S-12 PUMP

12-Inch Self-Priming Pump for Wastewater and Slurries

Maintenance Features
Tech Specs & Downloads

The S-12 is built for demanding liquid-handling applications where above-grade installation, reliable self-priming, and straightforward service access are important.

Its large-volume design supports automatic repriming in a completely open system without requiring suction or discharge check valves.

S SERIES-1

S-12 Pump Summary

The S-12 uses a two-vane, semi-open impeller designed for solids-laden liquids and slurries.

Its 12-inch design is intended to pass spherical solids up to 3 inches in diameter through critical areas.

Pump-out vanes on the impeller shroud help reduce foreign-material buildup behind the impeller and reduce pressure on the seal and bearings, supporting reliable operation and easier maintenance.

S-12: Designed for Easier Maintenance

The S-12 is designed to support routine service through accessible components and a removable rotating assembly.

S-4 solids-handling impeller
Solids-Handling Impeller
  • Two-vane, semi-open design
  • Designed to pass spherical solids up to 3 inches
  • Pump-out vanes help reduce foreign-material buildup behind the impeller
  • Helps reduce pressure on the seal and bearings
All Prime S-4 cartridge seal
Cartridge Seal
  • Double-floating, self-aligning, oil-lubricated mechanical cartridge seal
  • Stationary and rotating faces are tungsten titanium carbide
  • Designed for abrasive and/or trash-handling applications
All Prime S-4 removable rotating assembly
Removable Rotating Assembly
  • Can be removed without disturbing the pump volute or piping
  • Pusher bolts provide assistance with removal
  • Spare rotating assembly can be installed to reduce downtime
S-4 removable clean-out cover
Clean-Out Cover Access
  • Removable clean-out cover provides access to the pump casing
  • Provides access for inspection and clearing obstructions
  • Designed to simplify routine inspection and cleaning

S-12 Technical Specifications

Model S-12
Series S Series
Connection Size 12 inches
Pump Type Self-priming, solids-handling
Impeller Two-vane, semi-open solids-handling impeller
Solids Handling Up to 3-inch spherical solids
Mechanical Seal Double-floating, self-aligning, oil-lubricated cartridge seal
Seal Faces Tungsten titanium carbide
Flange Connections 150 lb. ANSI

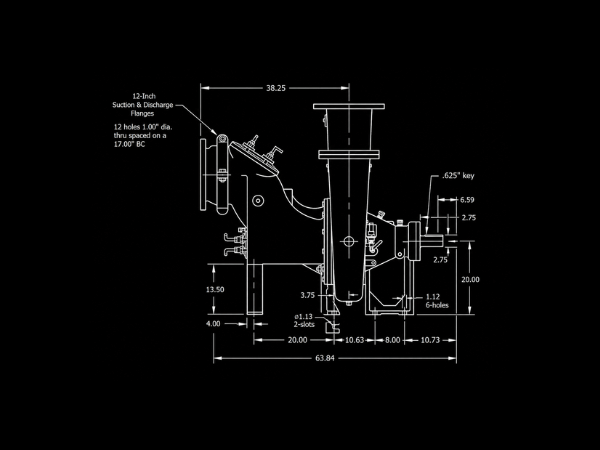

S-12

S-12 Downloads

Product documentation, parts information, and available technical resources for the S-12.

Contact All Prime for Orders

All Prime can help review your requirements and identify the appropriate pump and configuration.
Order Form

Applications

The S-12 is suited to demanding applications including:

  • Wastewater and Municipal Systems
  • Industrial and Process Applications
  • Mining and Aggregate
  • Food and Beverage
  • Energy and Manufacturing
  • Paper Mills
  • Steel Mills
  • Solids-Laden Liquids and Slurries

Parts and Service

All Prime supports the S-12 with replacement wear components and rotating-assembly service parts. Primary service items include the impeller, mechanical seal, wear plate, and related rotating-assembly components.

Contact All Prime for help identifying the correct replacement parts for an existing S-12.

Select the Right Pump Configuration

Pump selection should be based on the actual operating conditions of the application. Helpful information includes:


  • Required flow
  • Total dynamic head
  • Fluid being pumped
  • Solids size and concentration
  • Suction conditions
  • Available power
  • Existing pump information when replacing equipment
S SERIES-1

Explore the S Series

The S-12 is part of the All Prime S Series of self-priming, solids-handling pumps. Explore the full series to compare available pump sizes and select the model that best fits the application.

View S Series
